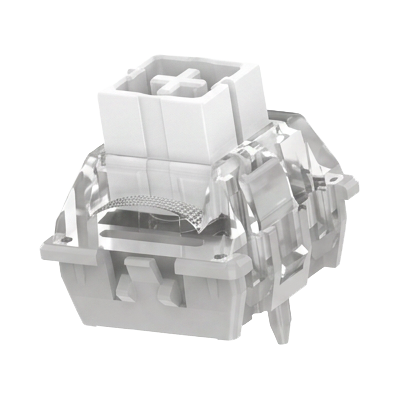

  • A translucent white mechanical keyboard switch module with a white top plate and internal gray and silver components, shown on a plain white background.

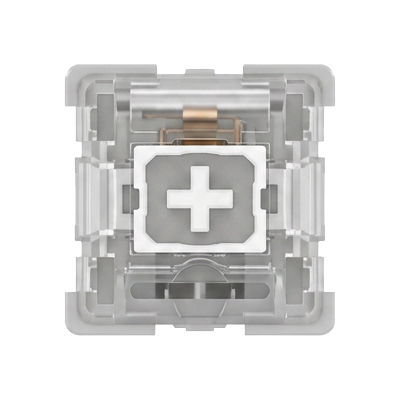

  • A top-down view of a transparent mechanical keyboard switch keycap, showing the internal structure, copper contacts, and a white central cross symbol on a gray base.

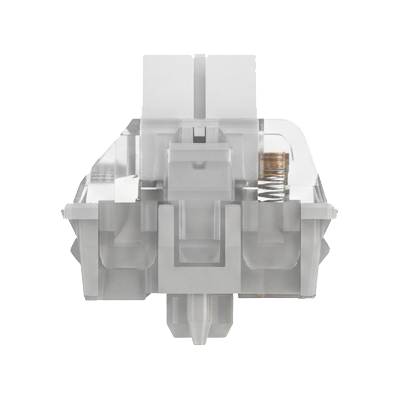

  • A close-up of a transparent and light gray mechanical keyboard switch module, showing internal components like a spring and contacts, isolated on a white background.

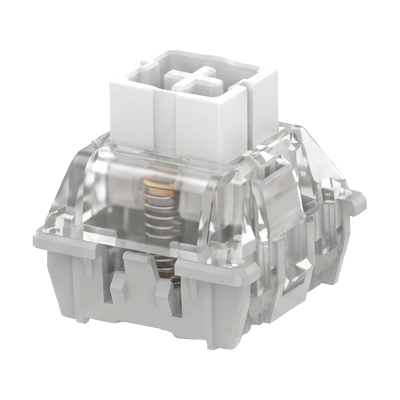

  • A single mechanical keyboard switch shown on a plain white background, with a transparent clear housing and a light gray top plate.
  • A translucent white mechanical keyboard switch module with a white top plate and internal gray and silver components, shown on a plain white background.
  • A top-down view of a transparent mechanical keyboard switch keycap, showing the internal structure, copper contacts, and a white central cross symbol on a gray base.
  • A close-up of a transparent and light gray mechanical keyboard switch module, showing internal components like a spring and contacts, isolated on a white background.
  • A single mechanical keyboard switch shown on a plain white background, with a transparent clear housing and a light gray top plate.
TTC Lite KOM HE Magnetic Switch

TTC Lite KOM HE Magnetic Switch

£29.99

TTC Lite KOM HE Magneto Switch

The TTC Lite KOM HE Magneto Switch is a smooth linear Hall Effect switch designed for stable, responsive performance across gaming and everyday typing. With a 35 ± 10gf initial force, 3.4mm total travel and a long 21mm spring, Lite KOM delivers a light, controlled keystroke with a smooth and consistent feel.

Its soft elastic design, dust-proof stem and silky-smooth operation provide a stable and comfortable typing experience, while the custom-defined pre-travel allows the switch to deliver precise Hall Effect performance.

With a rated lifespan of up to 100 million keystrokes, Lite KOM is built for long-term use and demanding gaming setups.

Available as a 68-switch set, making it an ideal quantity for your Krome Keyboard or as a replacement set.

Specifications:

  • Linear Hall Effect magnetic switch
  • 35 ± 10gf initial force
  • 3.4 ± 0.2mm total travel
  • Custom-defined pre-travel
  • 100 ± 20Gs initial magnetic flux (PCB 1.2mm)
  • 90 ± 20Gs initial magnetic flux (PCB 1.6mm)
  • 640 ± 70Gs final magnetic flux (PCB 1.2mm)
  • 480 ± 70Gs final magnetic flux (PCB 1.6mm)
  • 21mm spring
  • Soft elastic design
  • Dust-proof stem
  • Silky-smooth operation
  • PC top housing
  • Up to 100 million keystrokes

Compatibility: Lite KOM HE is a Hall Effect magnetic switch designed for compatible HE keyboards. Please verify your keyboard's magnetic switch orientation and compatibility before ordering.
Amount68 Switches

Please check that the switches are compatible with your keyboard before ordering. Switch compatibility can vary depending on the keyboard, PCB and switch technology.

Switches must not be forced into an incompatible keyboard, as this may damage the switches or keyboard. If you are unsure about compatibility, please contact us before ordering.

Please allow 1-2 working days for order processing before your switches are dispatched.

We offer a range of shipping options, with estimated delivery times based on your location and the shipping service selected. While we aim to meet these estimates, occasional delays may occur beyond our control.

Once your order has been dispatched, you'll receive a tracking number so you can follow its progress.

For any shipping questions, please contact us at info@kromekeycaps.com.

Keyboard switches can be returned within 14 days of delivery, provided they are unused and returned in their original condition and packaging.

Switches that have been installed, used or damaged may not be eligible for a change-of-mind return.

If your switches arrive damaged or faulty, please contact us within 14 days at info@kromekeycaps.com with details and photographs of the issue. Once confirmed, we'll arrange a refund or replacement at no additional cost.

For change-of-mind returns, return shipping costs are the responsibility of the customer unless otherwise stated.

Please visit our Refund Policy for full details.
A single transparent glass or acrylic switch keycap shown floating against a soft mint-green gradient background.

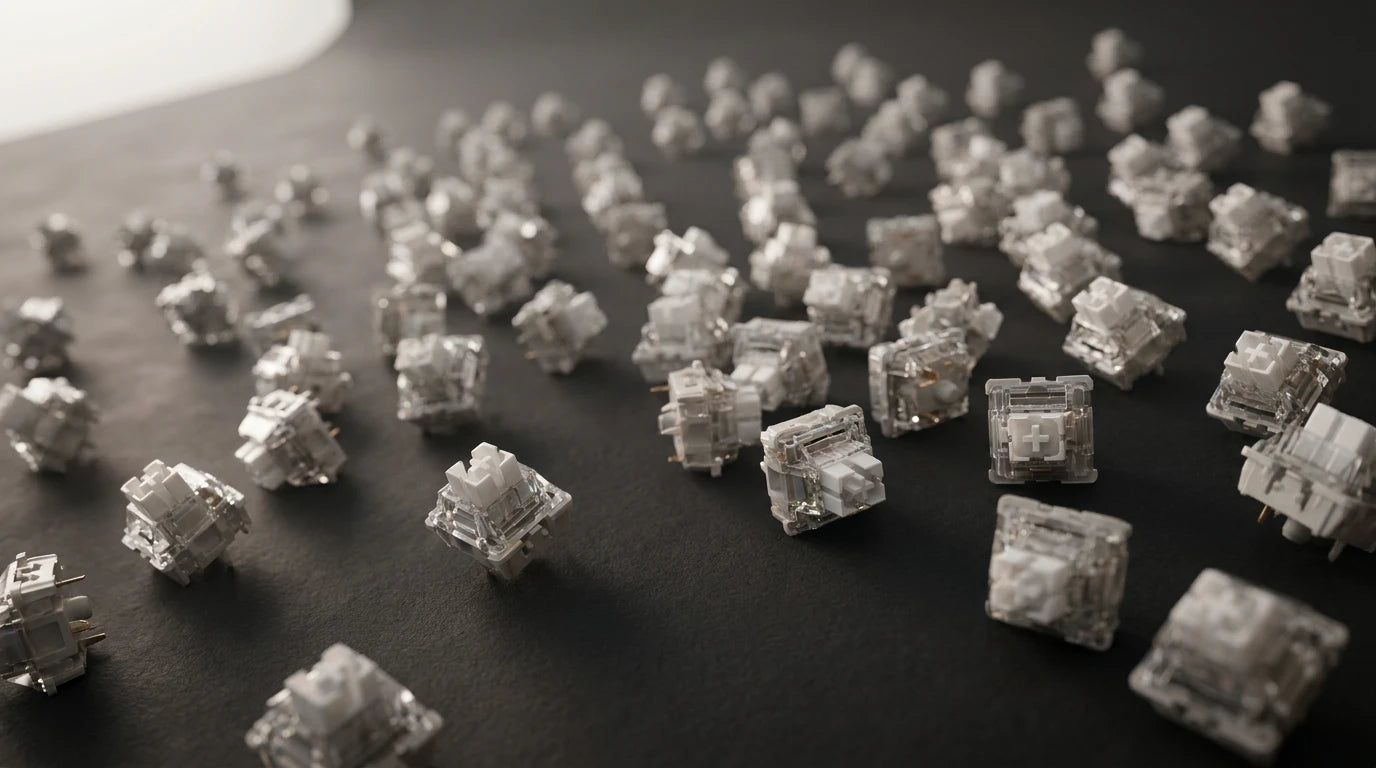

A close-up, shallow depth-of-field shot of numerous clear, transparent mechanical keyboard switches scattered across a dark, matte surface.

0.02mm Precision | Cross-Device Compatibility | Gamer-Centric Design

TTC Lite KOM Magnetic Switch

35±10gf Initial Force | 2-pin

TTC Lite KOM Magnetic Switch

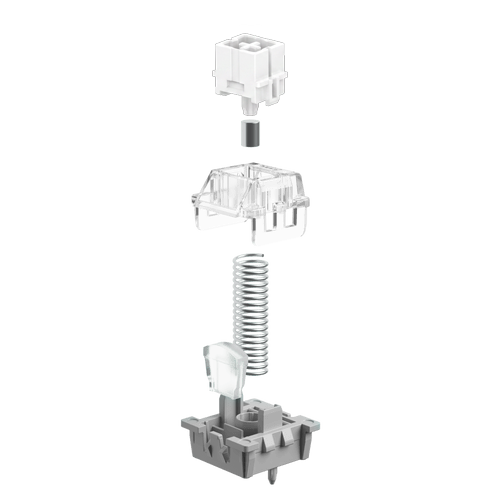

A mechanical keyboard switch component shown in an exploded vertical assembly on a plain white background, with a white top housing, clear transparent top plate, silver coil spring, and gray bottom base.

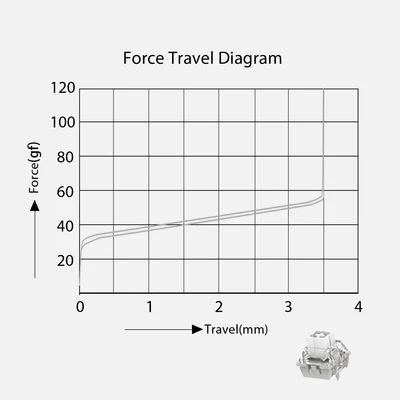

A force travel diagram graph with a grid, labeled 'Force Travel Diagram' at the top, showing force in grams on the y-axis and travel in millimeters on the x-axis. A small grayscale product photo appears in the bottom right corner.

Technical Specifications

Type: Linear

Total Travel: 3.4±0.2mm

Initial Force: 35±10gf

Spring: 21mm

Initial Magnetic Flux: 100±20Gs(PCB1.2mm)，90±20Gs(PCB1.6mm)

Bottom-out Magnetic Flux: 640±70Gs(PCB1.2mm)，480±70Gs(PCB1.6mm)

Lifetime: 100 Million Times Keystroke

TTC Lite KOM Magnetic Switch

TECH SPECS

The TTC Lite KOM HE Magnetic Switch is a smooth linear Hall Effect switch designed for precise, stable performance across gaming and everyday typing. Its 35gf initial force, 3.4mm total travel and long 21mm spring provide a light, controlled keystroke with a smooth and responsive feel. Built with a soft elastic design and dust-proof stem, Lite KOM delivers consistent, comfortable performance with a rated lifespan of up to 100 million keystrokes, making it a reliable choice for long-term use.
Type Linear
Total Travel 3.4±0.2mm
Pre Travel Custom Defined
Initial Force 35±10gf
Initial Magnetic Flux 100±20Gs(PCB1.2mm)，90±20Gs(PCB1.6mm)
Bottom-out Magnetic Flux 640±70Gs(PCB1.2mm)，480±70Gs(PCB1.6mm)
Materials PC
Stem Design Dust Proof Stem
Switch Tech MX Style
Compatibility Downward-facing N-pole magnet; compatible with HE keyboards using the same orientation.
